1Mil High Temperature Adhesive Label Material Matte Green Permanent Adhesive Polyimide With Glassine

Ask Lasest Price
Brand Name :	PANLARN
Model Number :	PL8520-2W-G
Price :	$10~12 per square meter
Payment Terms :	T/T,Paypal,west union,Alipay
Supply Ability :	10000square meter/1 week
Delivery Time :	7-15days
Certification :	SGS

Add to Cart

Product Details
Company Profile

1Mil High Temperature Adhesive Label Material Matte Green Permanent Adhesive Polyimide With Glassine

1Mil Matte Green Permanent Adhesive Polyimide Materials With Glassine

Product Description:

Pl8520-2w is a substrate for polyimide and is a permanent acrylic pressure-sensitive adhesive suitable for heat transfer printing of label's flat white coating surfaces and is designed for printed circuit boards or related electronic components used in character or logo and bar code label designs. It guarantees all kinds of extreme harsh application environment to maintain excellence in performance of the ideal material in circuit board and SMT, wave solder or DIP during reflow.

Product Feature :

Title	Description
Adhesive	Permanent adhesive
Color	Green
Shape	Roll

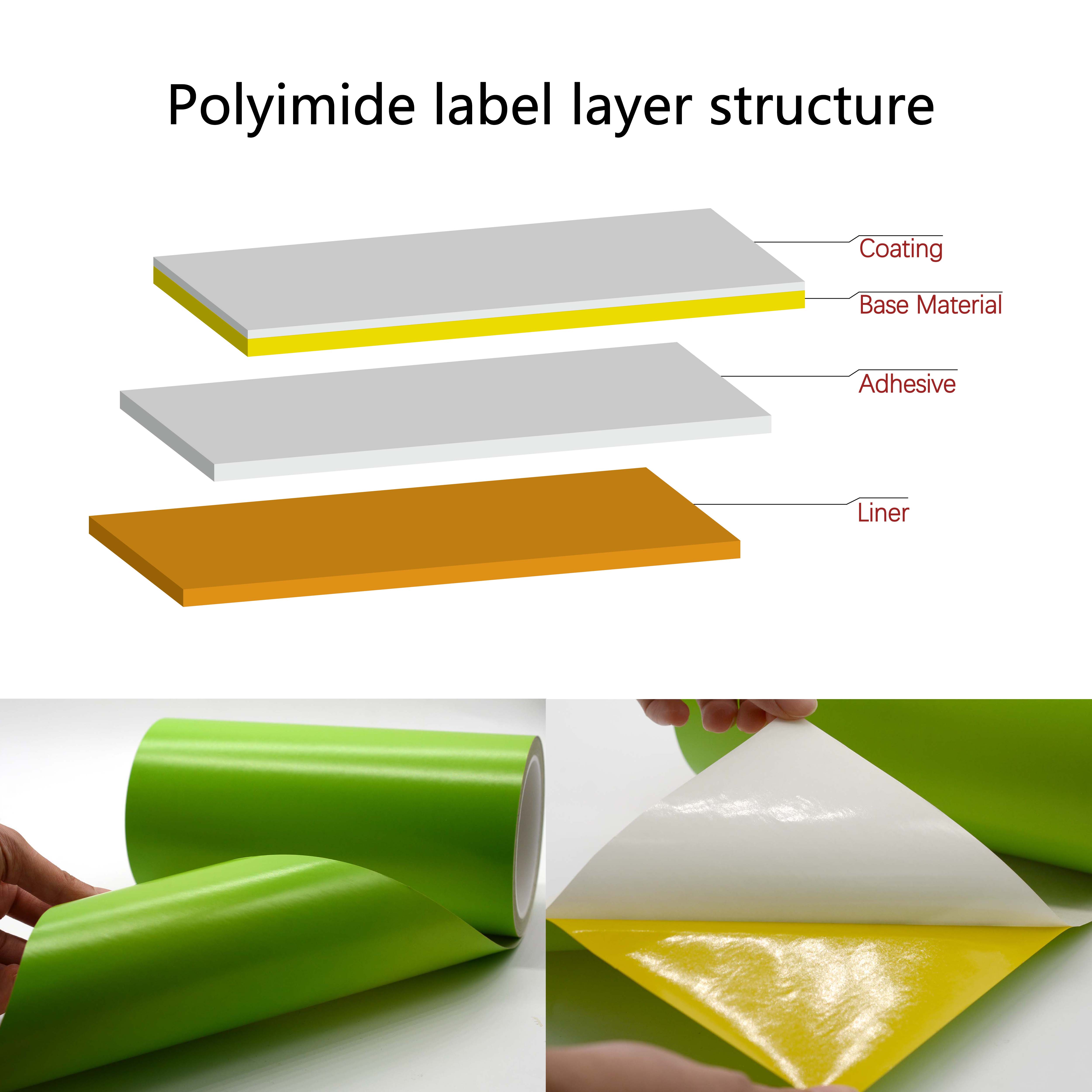

Face stock:
Coating	White matte finish 15um
Base material type	Polyimide PI film
Base material thickness	25um+-2
Liner:
Liner type	Glassine
Gram weight	90g
Thickness	75um+-5%
Adhesive
Adehesive type	Permanent adhesive
Thickness	25um+-1%
Release force	0.9-1.1kgf
Rest standard	GB/T 2792
Minimum application temperature	5-10℃
Service temperature range	-40℃~300℃

Applications:

PCB board processing bar code management
Component tracking bar code
Electronic chip identification
Printed circuit board label

Packing and Shipping:

By EMS,DHLFedEx,TNT,UPS or other express
Domestic freight forwarders to any city in China
By your forwarding agent
